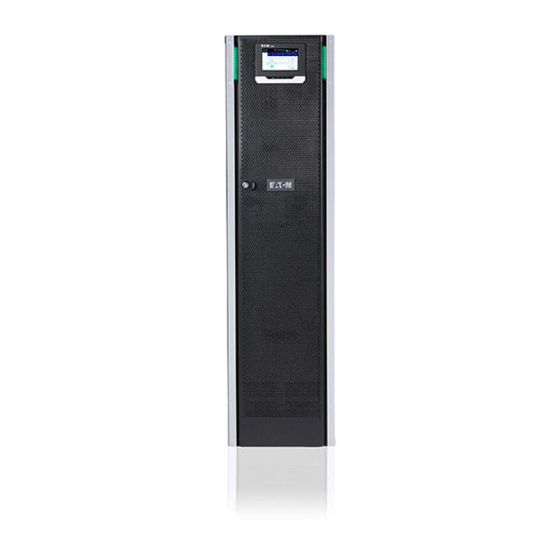

Eaton 93PS UPS Dubbele conversie (online) 10 kVA 10000 W

Artikelnummer: BA01A6206A01100000
€ 8.755,55 excl. BTW

Niet op voorraad

  • Gratis verzending
  • Gratis retourneren
  • Op werkdagen voor 17:00 besteld, dezelfde dag verzonden

Omschrijving

Eaton 93PS UPS Dubbele conversie (online) 10 kVA 10000 W
Eaton 93PS - UPS - 220/230/240/380/400/415 V wisselstroom V - 10 kW - 3-fase - 9 amp?re-uur - Ethernet 10/100, RS-232, USB |BA01

Specificaties

Algemeen

Merk Eaton

Kenmerken

Geluidsniveau 60 dB
Efficientie 96 procent
Stroomspanning bescherming Overbelasting
Power factor 1
Input stroom THD 4 procent
Output frequentie 50/60 Hz
Aantal input fases 3
Aantal output fases 3
Input vermogensfactor 0,99
Output vermogensfactor 1
Output power capacity 10 kVA
Frequentie 50/60 Hz
Uitgangsvermogen 10000 W
Ingang operation voltage (max) 415 V
Ingang operation voltage (min) 380 V
Uitgang operation voltage (min) 380 V
Uitgang operation voltage (max) 415 V
Golfvorm Zuivere sinus
UPS-topologie Dubbele conversie (online)

Accu/Batterij

Ondersteund aantal accu's/batterijen 64
Hot-swap batterij Ja
Batterij capaciteit 9 Ah
Batterijtechnologie Sealed Lead Acid (VRLA)
Automatische batterij test Ja

Certificaten

Certificering IEC 62040-1, IEC 62040-2, IEC 62040-3

Verpakking

Meegeleverde software Intelligent Power Software suite
Beheerskaart inbegrepen Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS) 85078000

Design

Internationale veiligheidscode (IP) IP20
Vormfactor Tower
LED-indicatoren Ja
Kleur van het product Zwart
Type beeldscherm LCD

Poorten & interfaces

Aantal USB 2.0-poorten 1
RS-232 port 1
USB-poort Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T) 5 - 45 °C

Gewicht en omvang

Gewicht 252 kg
Hoogte 1300 mm
Breedte 335 mm
Diepte 750 mm

Overige specificaties

Netspanning, in bedrijf 400 V
Nominale input voltage 400 V

Safety regulation & standards

Veiligheid IEC 62040-1
