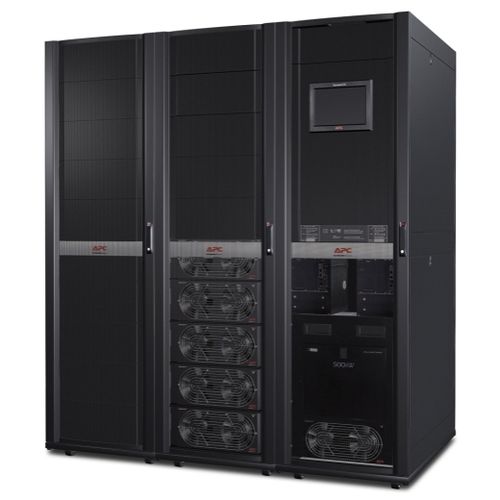

APC SY125K500D-NB uninterruptible power supply (UPS)

Artikelnummer: SY125K500D-NB
€ 60.053,24 excl. BTW

Niet op voorraad

  • Gratis verzending
  • Gratis retourneren
  • Op werkdagen voor 17:00 besteld, dezelfde dag verzonden

Omschrijving

APC SY125K500D-NB uninterruptible power supply (UPS)
APC SY125K500D-NB. UPS-topologie: Dubbele conversie (online), Output power capacity: 500 kVA, Uitgangsvermogen: 500000 W. Stopcontacttypes: Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Vormfactor: Tower, Kleur van het product: Zwart, Type beeldscherm: LCD. Certificering: cUL Listed, CSA C22.2 No.107.3-05, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, OSHPD, UL.... Breedte: 1800 mm, Diepte: 1070 mm, Hoogte: 1991 mm

Specificaties

Algemeen

Merk APC

Kenmerken

Responstijd 2 ms
Geluidsniveau 54 dB
Efficientie 96 procent
Stroomspanning bescherming Overbelasting, Kortsluiting
Input stroom THD 5 procent
Output voltage THD 3 procent
Output frequentie 50/60 Hz
Aantal input fases 2
Aantal output fases 3
Input vermogensfactor 0,99
Hoorbare alarmstanden Alarm bij werking op batterij, Alarm bij laag batterijniveau
Geluidsalarm(en) Ja
Output power capacity 500 kVA
Frequentie 40/70 Hz
Uitgangsvermogen 500000 W
Ingang operation voltage (max) 552 V
Ingang operation voltage (min) 400 V
Uitgang operation voltage (min) 400 V
Uitgang operation voltage (max) 480 V
Golfvorm Sinus
UPS-topologie Dubbele conversie (online)

Eisen aan de omgeving

Temperatuur bij opslag -30 - 70 °C
Hoogte, in bedrijf 0 - 1000 m
Relatieve vochtigheid in bedrijf (V-V) 0 - 95 procent
Bedrijfstemperatuur (T-T) 0 - 40 °C
Luchtvochtigheid bij opslag 0 - 95 procent
Hoogte bij opslag 0 - 15000 m

Gewicht en omvang

Gewicht 1136 kg
Hoogte 1991 mm
Breedte 1800 mm
Diepte 1070 mm

Inhoud van de verpakking

Snelle installatiehandleiding Ja
Gebruikershandleiding Ja

Design

Internationale veiligheidscode (IP) IP20
Vormfactor Tower
LED-indicatoren Ja
Kleur van het product Zwart
Type beeldscherm LCD

Poorten & interfaces

RS-232 port 1
Stopcontacttypes Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
SmartSlot Ja

Certificaten

Certificering cUL Listed, CSA C22.2 No.107.3-05, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, OSHPD, UL 1778, UL 60950-1, UL Listed

Verpakking

Diepte verpakking 1270 mm
Hoogte verpakking 2150 mm
Breedte verpakking 1870 mm
Gewicht verpakking 1309 kg
