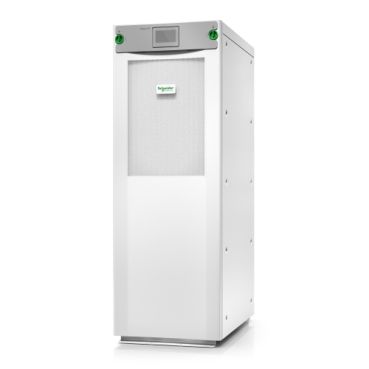

APC GVSUPS50KB4GS uninterruptible power supply (UPS)

Artikelnummer: GVSUPS50KB4GS
€ 21.632,32 excl. BTW

Niet op voorraad

  • Gratis verzending
  • Gratis retourneren
  • Op werkdagen voor 17:00 besteld, dezelfde dag verzonden

Omschrijving

APC GVSUPS50KB4GS uninterruptible power supply (UPS)
APC GVSUPS50KB4GS. UPS-topologie: Dubbele conversie (online), Output power capacity: 50 kVA, Uitgangsvermogen: 50000 W. Stopcontacttypes: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Batterijtechnologie: Sealed Lead Acid (VRLA), Accu/Batterij voltage: 480 V. Vormfactor: Tower, Kleur van het product: Wit, Type beeldscherm: LCD. Certificering: CSA C22.2 No 107.3, FCC Part 15 class A, IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Specificaties

Algemeen

Merk APC

Kenmerken

Geluidsniveau 61 dB
Warmtedissipatie 5210 BTU/h
Stroom (max.) 74 A
Stroomspanning bescherming Overbelasting, Kortsluiting
Input stroom THD 3 procent
Output frequentie 50/60 Hz
Aantal input fases 3
Aantal output fases 3
Input vermogensfactor 0,99
Geluidsalarm(en) Ja
Output power capacity 50 kVA
Frequentie 40/70 Hz
Uitgangsvermogen 50000 W
Crest factor 2.5:1
Ingang operation voltage (max) 480 V
Uitgang operation voltage (max) 480 V
ECO mode Ja
Golfvorm Sinus
UPS-topologie Dubbele conversie (online)

Accu/Batterij

Accu/Batterij voltage 480 V
Batterijtechnologie Sealed Lead Acid (VRLA)

Certificaten

Certificering CSA C22.2 No 107.3, FCC Part 15 class A, IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Verpakking

Diepte verpakking 990 mm
Hoogte verpakking 1680 mm
Breedte verpakking 640 mm
Gewicht verpakking 490 kg

Design

Internationale veiligheidscode (IP) IP20
Vormfactor Tower
Kleur van het product Wit
Type beeldscherm LCD

Poorten & interfaces

Stopcontacttypes Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
SmartSlot Ja

Eisen aan de omgeving

Temperatuur bij opslag -15 - 40 °C
Hoogte, in bedrijf 0 - 1000 m
Relatieve vochtigheid in bedrijf (V-V) 0 - 90 procent
Bedrijfstemperatuur (T-T) 0 - 40 °C
Luchtvochtigheid bij opslag 10 - 80 procent
Hoogte bij opslag 0 - 3048 m

Gewicht en omvang

Gewicht 460 kg
Hoogte 1485 mm
Breedte 521 mm
Diepte 847 mm

Inhoud van de verpakking

Snelle installatiehandleiding Ja
Gebruikershandleiding Ja
